(Navimow H1) Winter Storage Guide

To ensure your mower works perfectly in the next mowing season, it’s time to prepare Navimow for winter storage.

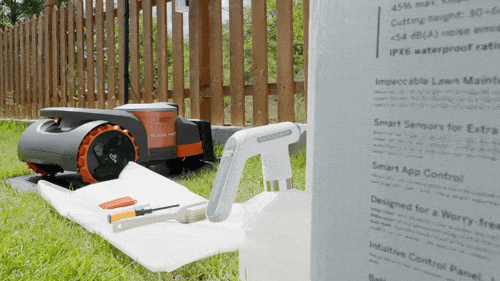

Get your tools ready

Prepare the following items:



A screwdriver (Do NOT use an electric screwdriver)
A brush for cleaning the mower
A pair of protective gloves for removing the blades
4 silicone pegs (Take them out from the mower's box)


Charge your mower

To preserve the battery, you need to power off the mower and charge it before storage to avoid battery drainage.

Step 1: Charge the mower to at least 85% of battery.
Note: It is recommended to take out the charging station and the mower and charge the mower every 120 days during winter.

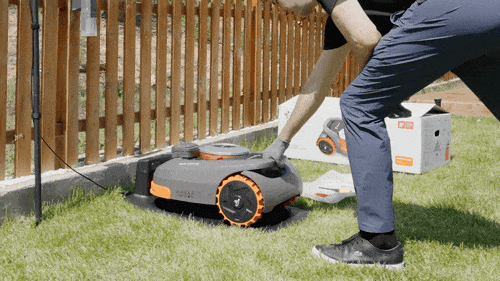

Step 2: Power off the mower and pull it out from the charging station.
Note: If you have enabled Anti-theft, press the OK button for about 3 seconds, enter the PIN code to unlock, and the mower will be powered off soon. Go to Settings > MOWER > Reset PIN code if you forget your PIN code.



Uninstall your charging station and mark its location

Use the silicone pegs to mark the location of the charging station, so that you can find where it was previously installed in the next mowing season.

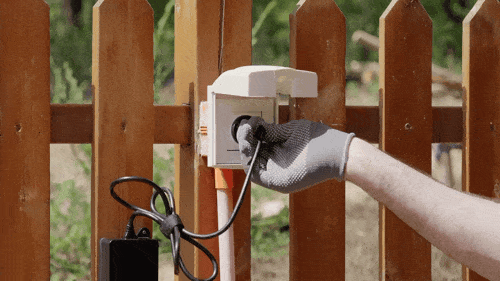

Step 1: Unplug the charging station.
Step 2: Unscrew the 4 screws off the charging station.
Step 3: Mark the charging station with the 4 silicone pegs.
Step 4: Disconnect the charging station and the antenna cable.
Step 5: Leave the silicone pegs in the ground.

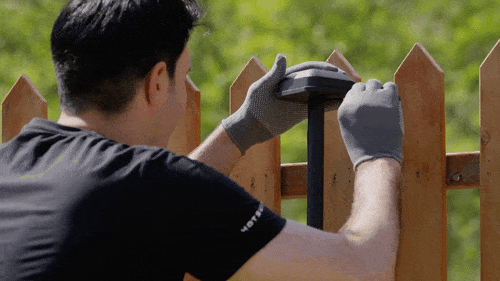

Uninstall the antenna

It is recommended to leave the bottom part of the antenna at its place. You may need to create a new map if the location of the antenna is changed.



Step 1: Uninstall the screw from the antenna
Note: If there is any inconvenience, the antenna installed on a wall or roof can be left at its place. Use a plastic bag or a cover to cover up the antenna for protection.


Remove the blades and clean the mower thoroughly



Step 1: Put your protective gloves on and remove the blades with caution.
Step 2: Turn the mower upside down and clean it with brush.
Step 3: Use a water hose to wash away the dirt and leave the mower to get dry.

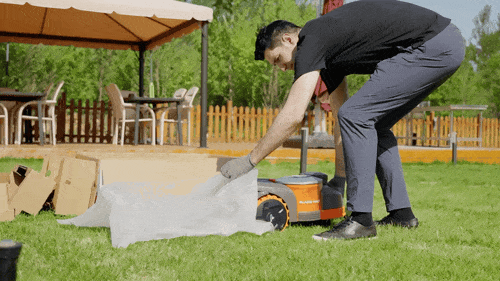

Put everything into the box and store them

Finally, pack the mower, the charging station, the antenna, and all the cables into the box. Store the box in a dry, frost-proof indoor place where the temperature is between 0°C (32°F) and 35°C (95°F)

To watch the tutorial video, go to https://www.youtube.com/watch?v=obkofgWvkeI
